Skin Packaging Machine

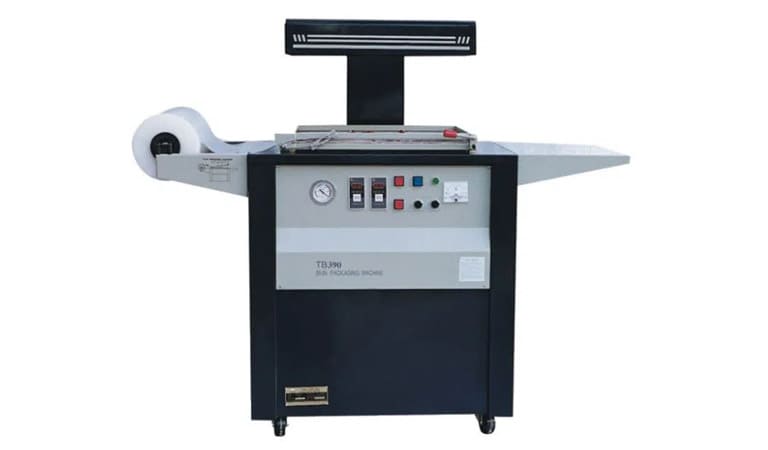

Skin Packaging Machine TB-390


Technical Specifications:
MODEL TB-390
Voltage (V/Hz) AC 220/50 380/50(3PH) 220/60(3PH)
Total Power (W) 11
Packaging Area(mm) 390×540
Packing Speed(pcs/h) 40~50
Package Material PVC PE Skin packaging film
Film Width (mm) 450
External Dimensions (L×W×H) (mm) 1515×605×1355
Net Weight (kg) 135

Key Features:

  • The introduction of advanced vacuum technology, high-quality silent type vacuum pump, suction is strong, and has been the installation of over voltage protection, long pump life, high efficiency, low failure rate, especially for circuit boards and other bubble-cloth vacuum packaging.
  • Suitable for small batch production line and medium volume production.
  • Feeding way: forward in and right out.
  • The cutter is equipped with hot-box and protective cover, safe, hot box automatically moves Thermostat, special permutations and combinations of far-infrared heating pipe, heating quickly and evenly.
  • Used Japan and Germany imported parts, stable and reliable performance, the packaging area is bigger, high packing efficiency, low loss, coupled with pipeline operations, reduce costs and improve efficiency.

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.
