Blister Packing Machine

1. Blister Packaging Machine XBF-500

More info

2. Blister Packaging Machine XBF-750

1. Blister Packaging Machine XBF-500

Technical Specifications:

MODEL	XBF-500
Voltage (V/Hz)	AC 220/50 110/60
Sealing Power (W)	1500
Pressure Board Area (mm)	500×300
Turntable Diameter(mm)	φ1000
Max. Package Height(mm)	150
Max. Conveyor Loading(kg)	110
External Dimensions (L×W×H)(mm)	920×1070×1520
Net Weight(kg)	70

XBF-500 Automatic PVC Plastic Blister Sealing Machine is suitable for transparent P V C attracting models and revertex card seal togather. It is transparent, artistic, moisture-proof, dustproof, guarding against disperses after the product seals packing. It is widely used in hardware, toy, stationery, eyeglasses, small daily use articles, battery, handicraft, auto fitting, electric appliance part, souvenir, commodity packing and so on.

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.

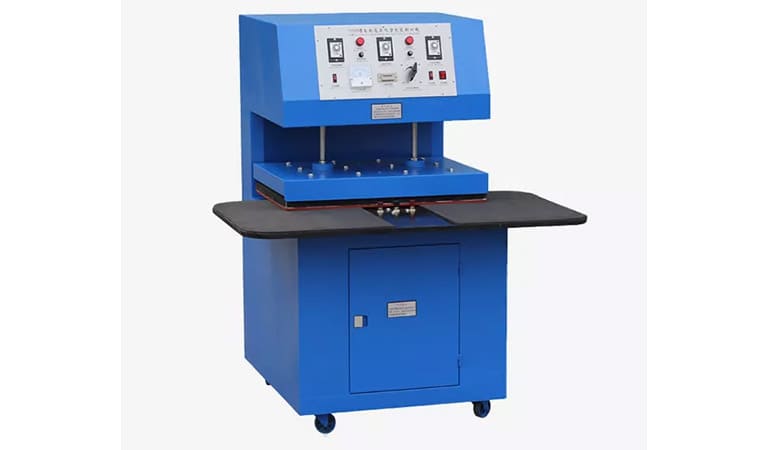

2. Blister Packaging Machine XBF-750

Technical Specifications:

MODEL	XBF-750
Power source	220 V, 50Hz, 3KW
Delayed time (second)	0-10 seconds (Adjustable)
Heating time (second)	0-10 seconds (Adjustable)
Cooling time (second)	0-10 seconds (Adjustable)
Shifting thermoelectricity device	Eight adjustable channel
Counting	Six figures
Pressure area (mm)	500mm × 750mm
Capacity	3-7 seconds/mold
Qty of mold	1 set for 2 pcs ( produce specially)
Height of packing objects	2mm-150mm (changeable)
Packing material	PVC attracting models and revertex card
Using Air source	>4kgf1cm
Machine size	1240mm×1450mm×1450mm
Weight	170kg

XBF-750 automatic high speed blister packing sealing machine is suitable for transparent P V C attracting models and revertex card seal together. It is transparent, artistic,moisture-proof, dust-proof, guarding against dispersesafter the product seals packing. It is widely usedin hardware, toy, stationery, eyeglasses, smalldaily use articles, battery, handicraft, autofitting,electric appliance part, souvenir, commodity packing and so on.
