Sleeve Wrapping Machine

Sleeve Wrapping Machine

1. Semi Automatic Sleeve Sealing Machine

2. Automatic Sleeve Sealing Machine

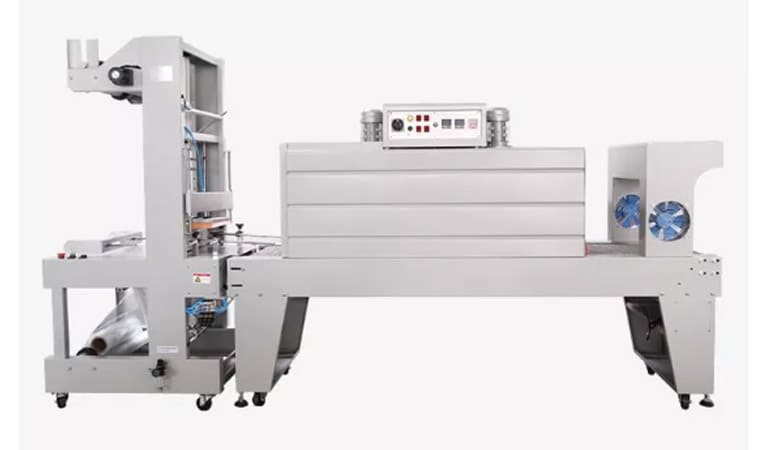

1. Semi Automatic Sleeve Sealing Machine


Technical Specifications:
MODEL BSF-6540XLT
Voltage (V/Hz) AC 380/50 220/60 3 Phase
Compressed Air (Lt/min) 60
Power (kw) 18.5
Max. Packing Size (L×W×H) (mm) 520×320×350
Maximum Film Width (mm) 600
Packing Speed (pcs/min) 8-10
Sealing & Cutting Length (mm) 650
Sealing Time Setting (S) 1.5-3
Temperature Setting (℃) 150-250
Suitable Film Thickness (μm) PE 40-80
Tunnel Size (L×W×H) (mm) 1500×600×400
External Dimension (L×W×H) (mm) 3500×860×2000
Net Weight (kg) 520

Key Features:

  • The machine is used to shrink package single and multiple products.
  • Sealing and cutting mechanism and shrinking parts are integrated structure saving space required for operation and storage.
  • The simple design enables quick and easy change of packing products with different package sizes.

Applications:

  • BSF-6540XLT semiautomatic sleeve sealing machine is applied to heat shrinkable film such as PE etc.
  • The machine is used for many industries, such as printing, pharmacy, floor, chinaware, beverage, beer, etc.
  • To use in place where there is enough space, such as factory, and warehouse etc.

2. Automatic Sleeve Sealing Machine


Sleeve Wrapper

Technical Specifications:
MODEL TF-6540SA
Voltage (V/Hz) AC 220/50 110/60
Air Pressure Required (kg/cm³) 5-7
Power (kw) 1.5
Max. Packing Size (L×W×H) (mm) 550×400×380
Max. Sealing Length (mm) 650
External Dimension (L×W×H) (mm) 925×1040×1920
Net Weight (kg) 300

Key Feature:

  • The machine is used to shrink package single and multiple products.

Applications:

  • Ideal solution for many industries, such as printing, pharmacy, floor, chinaware, beverage, beer, etc.
  • It's suitable for all kinds of shrink films such as PP, PE, etc.
  • BS-5540M This kind of shrink tunnel is designed in hot-wind & upper-cyclone structure, it is suitable for heat shrinkable film such as PVC, POF, PP etc., specially for PE.
Thermo Shrink Tunnel

Technical Specifications:
MODEL BS-5540M
Voltage (V/Hz) 380/50(3P) 220/60(3P)
Power (kw) 23
Loading (kg) 40
Conveying Speed (m/min) 0~8
Tunnel Size (L×W×H) (mm) 1450×550×400
External Dimension (L×W×H) (mm) 2550×850×1600
Net Weight (kg) 300

Key Features:

  • Intelligence temperature control and strong turbine motor are adopted.
  • Stainless steel mesh type conveyor and roller type conveyor are available.

Applications: BS-55 series shrink tunnel are suitable for packing single large object or combined object consisting of several small articles.

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.
